Ingersoll Rand Hose Replacement - 47563308001

Is the 47563308001 hose compatible with my Ingersoll Rand compressor?

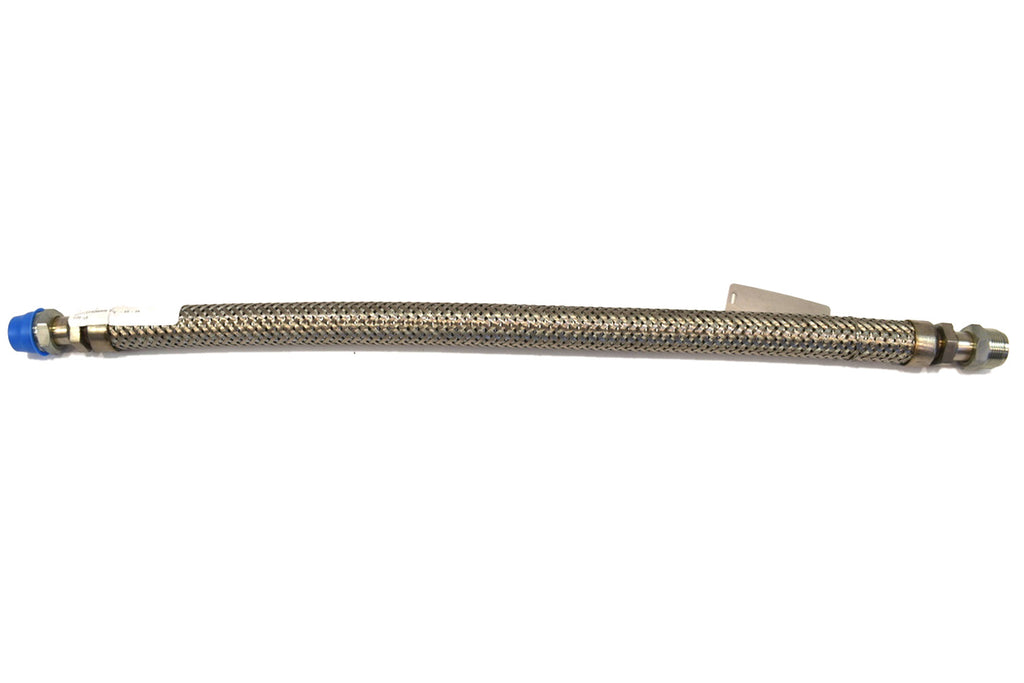

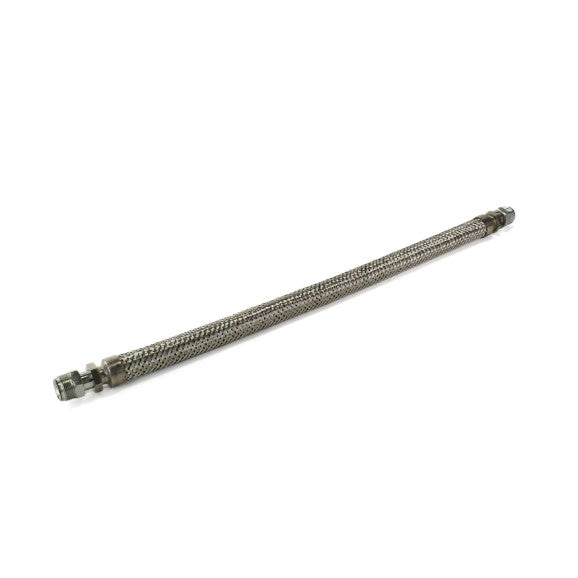

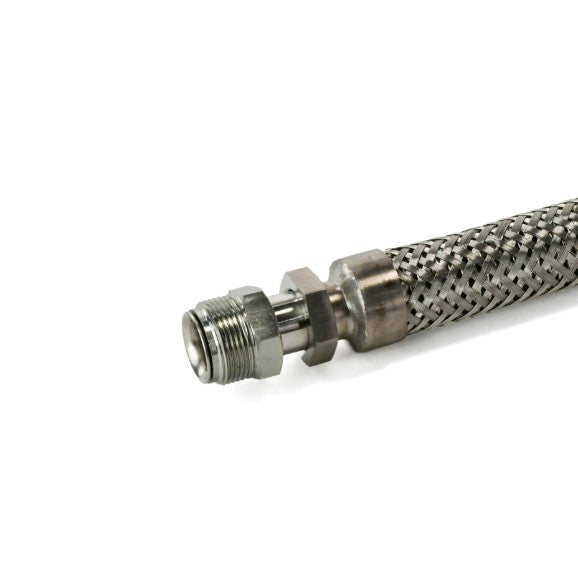

The 47563308001 is an Ingersoll Rand discharge hose for compatible compressor applications. Parts references identify 47563308001 as a 3/4 inch stainless steel discharge hose measuring 25.5 inches. Compatibility should always be confirmed by matching 47563308001 in your compressor manual and verifying the model, serial number, hose length, fitting size, hose material, discharge-line routing, pressure rating, and temperature rating before ordering. Not sure? Reach out with your compressor model and serial number and we’ll help confirm compatibility.

What does the 47563308001 hose do?

The 47563308001 routes compressed air from the compressor pump discharge area to the next connection point in the air system. On compatible reciprocating compressors, it helps:

• Carry hot compressed discharge air
• Connect the pump discharge to downstream piping or tank components
• Absorb vibration between connected components
• Support proper air flow from the compressor pump
• Maintain safe and reliable compressor operation

Why is replacing the 47563308001 important?

A properly functioning 47563308001 helps maintain:

• Safe discharge-air routing
• Reduced air leakage
• Proper compressor output
• Lower vibration stress on rigid piping
• More reliable reciprocating compressor performance

A cracked, leaking, kinked, worn, corroded, or heat-damaged discharge hose can reduce air delivery, create unsafe hot-air leaks, or place stress on connected fittings and piping.

What are the signs that the 47563308001 hose may need replacement?

Common signs can include:

• Audible air leak near the discharge hose
• Visible cracks, fraying, corrosion, or heat damage
• Kinked or crushed hose body
• Damaged hose fittings
• Reduced compressor output
• Longer time to build tank pressure
• Excessive vibration near the hose
• Hot air escaping around the hose or fittings

These symptoms can also be caused by loose fittings, failed gaskets, damaged discharge tubing, check valve issues, or tank piping leaks. Inspect the full discharge path before replacing only the 47563308001.

Is this an OEM part?

This is an OEM-equivalent replacement hose designed to meet the same performance standards as the original Ingersoll Rand hose.

How difficult is it to install?

Installing the 47563308001 is generally a moderate maintenance task because the hose is part of the compressor’s hot, pressurized discharge-air path.

Before service, the compressor should be:

• Fully shut down
• Electrically locked out if required
• Completely depressurized
• Cooled to a safe working temperature
• Verified so no stored pressure remains in the pump, discharge line, receiver tank, or connected piping
• Documented so hose routing and fitting orientation can be restored correctly

Installation typically involves removing the old discharge hose, inspecting fittings and sealing surfaces, installing the replacement 47563308001 without twisting or kinking the hose, tightening fittings properly, and checking for air leaks after startup.
